UBC Series
Engineered for high performance and reliability.
The UBC Series offers a smart, flexible, and safe technology for battery charging, designed to meet the demands of modern industrial and commercial applications.
Technical specifications
- True universal compatibility
- Multi-Voltage, Multi-Capacity
- Multi-Chemistry
- Sealed Battery (Flooded, GEL, VRLA)
- Lithium Battery
- Suitable for all charging modes: conventional, opportunity, and fast charging
- Customizable charging curves
- Automatic battery recognition
- Reduces water consumption and extends battery life
- Customizable CAN BUS communication (only for Lithium Battery)
- Complete electronic protection system:
- Wrong AC input
- Wrong battery
- Reverse polarity detection
- Easy maintenance with a highly reliable design
- Integrated data logger for advanced diagnostics
UBC Series
Compare models
A1 / 6-20 kW
Dimensions: 505 x 442 x 901 mm
The A1 model is the most compact solution and is suitable for conventional charging and opportunistic charging in standard systems.

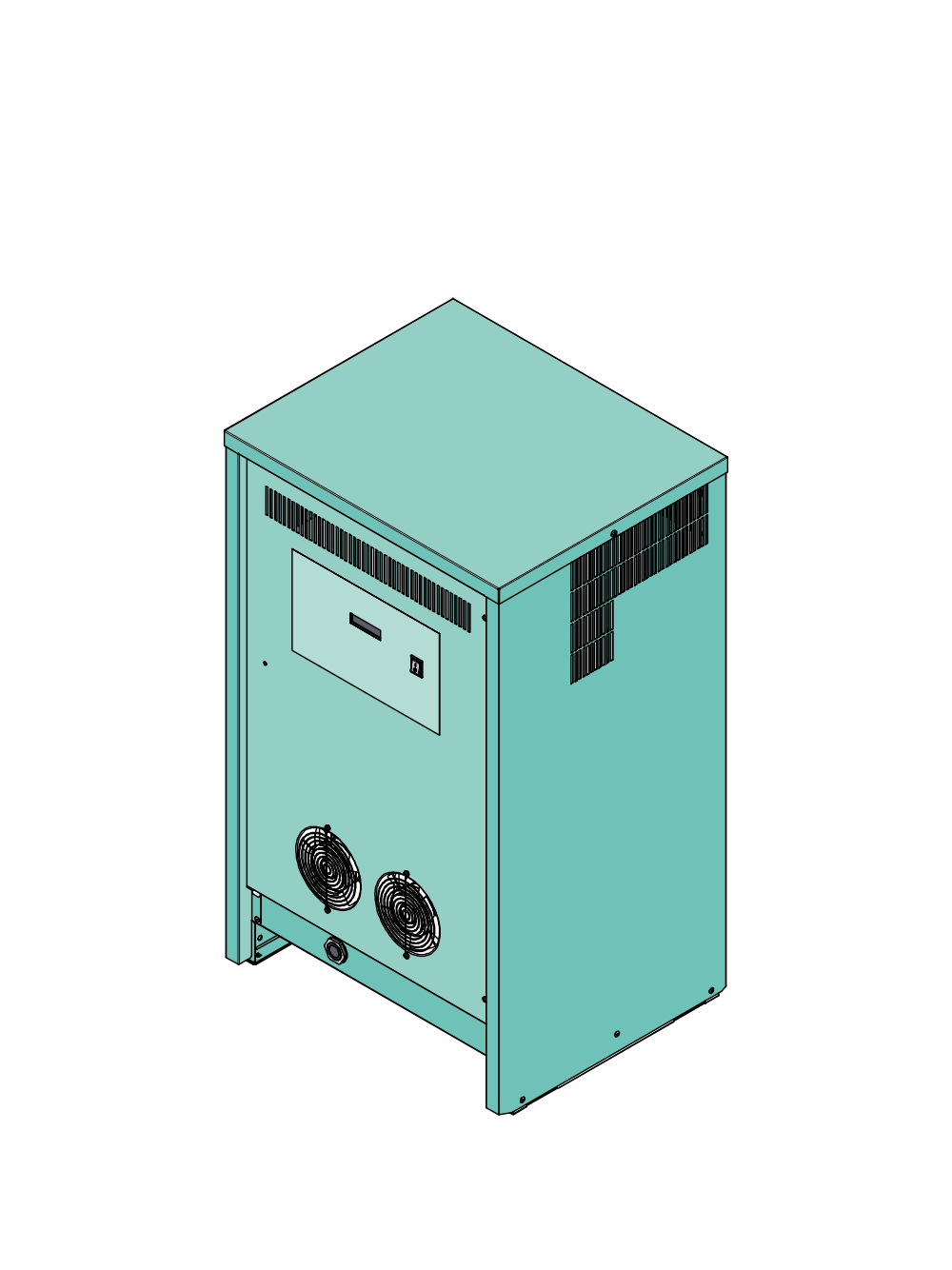

A2 / 9-32 kW
Dimensions: 626 x 552 x 1055 mm
The A2 model introduces fast charging, with a greater power range and more configuration options.

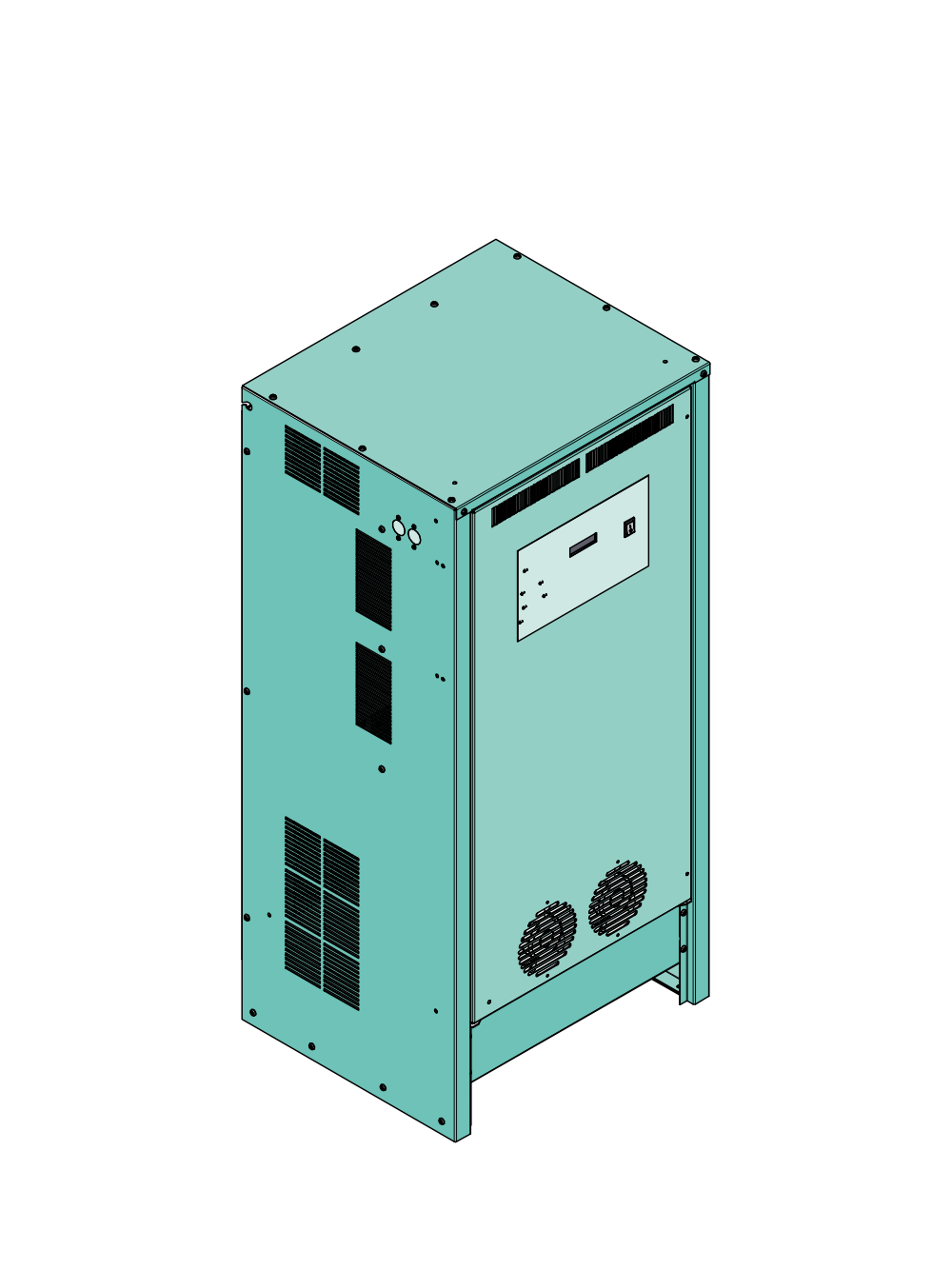

A3 / 12-36 kW
Dimensions: 650 x 552 x 1400 mm
The A3 model further enhances performance, with higher currents and input voltages suitable for heavy industrial environments.

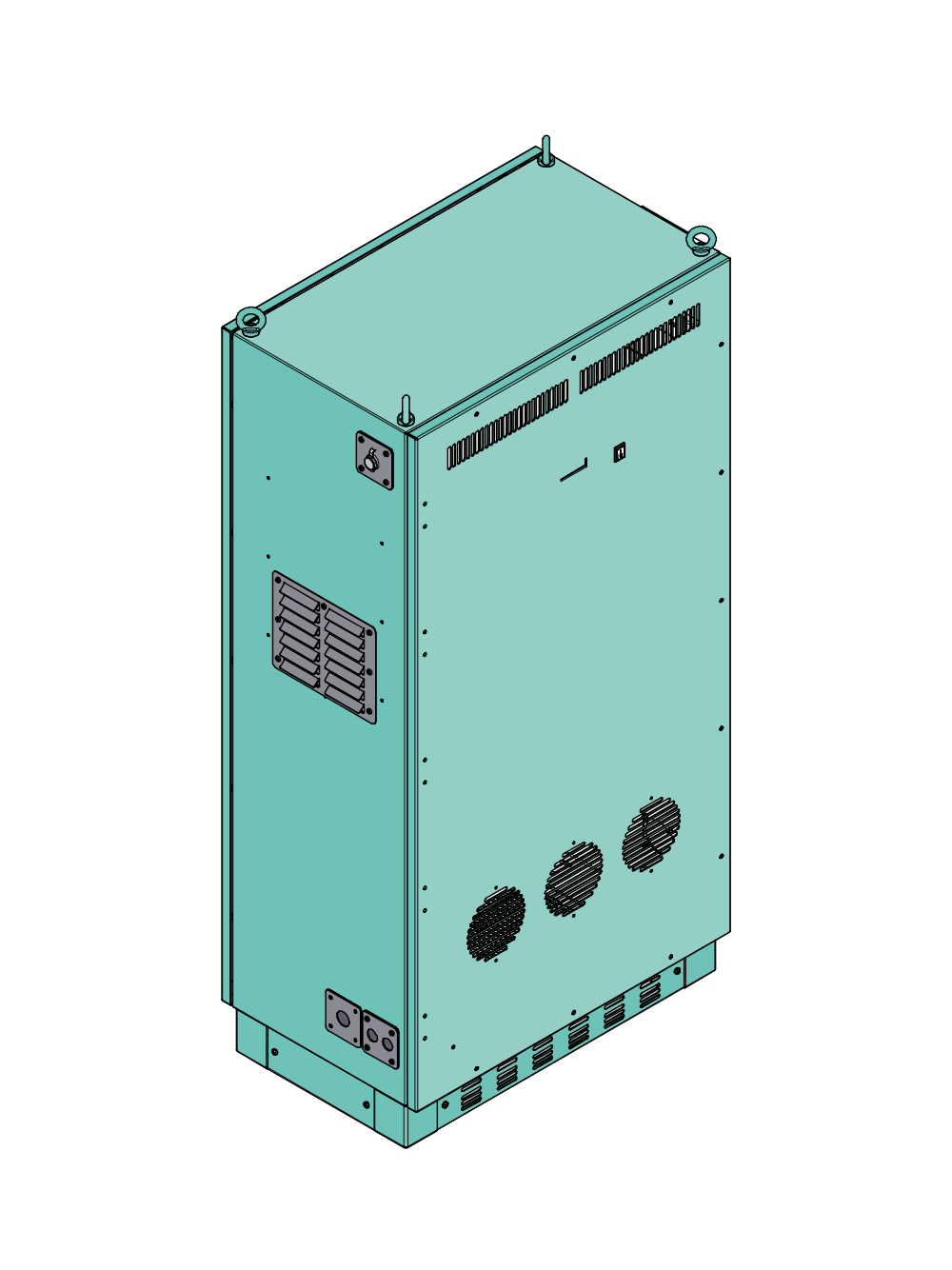

A4 / 50 kW
Dimensions: 881 x 503 x 1601 mm
The A4 model offers high fixed power ratings for high-capacity applications (50 kW), ensuring maximum efficiency and operational continuity in large-scale systems.

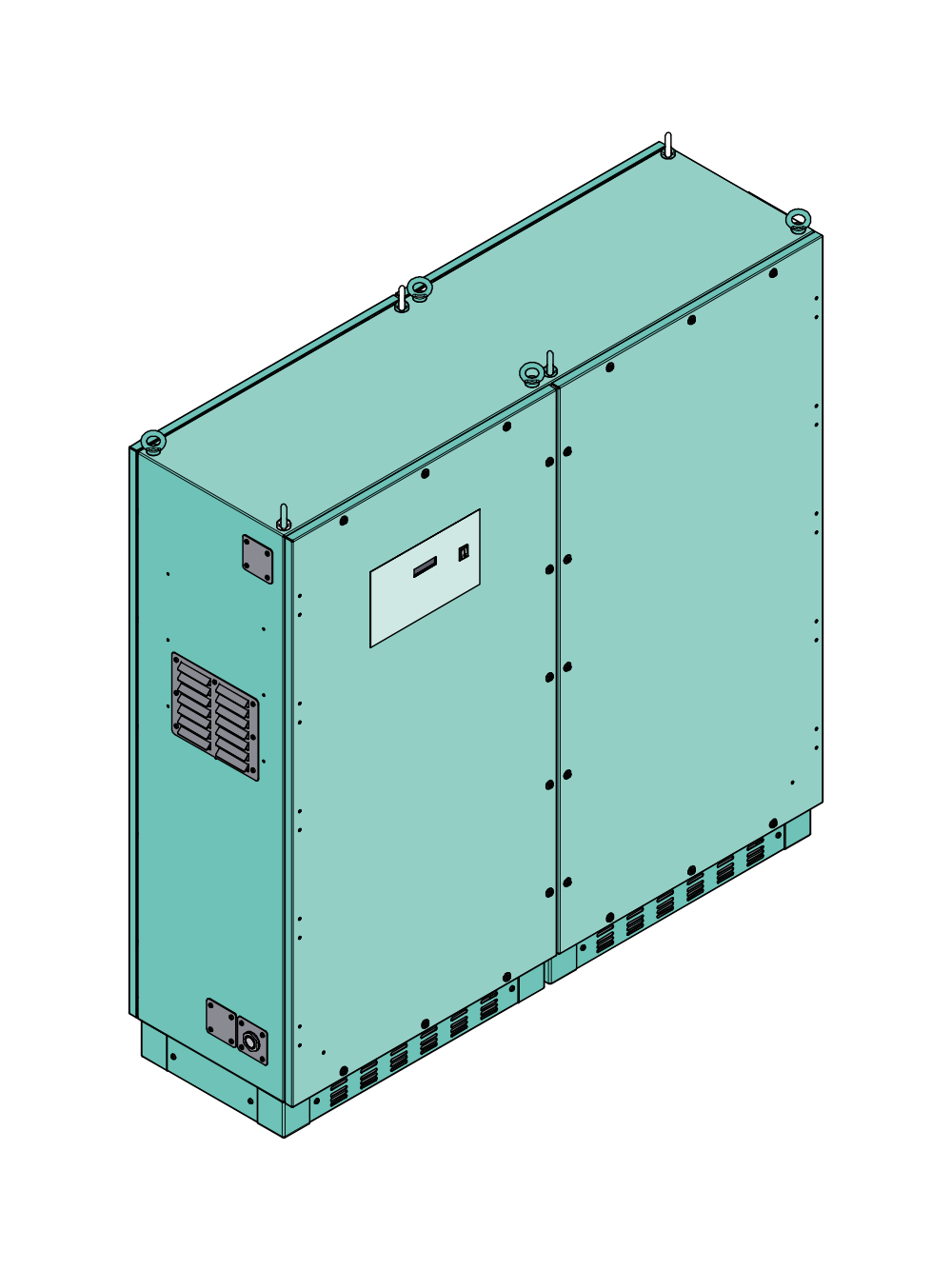

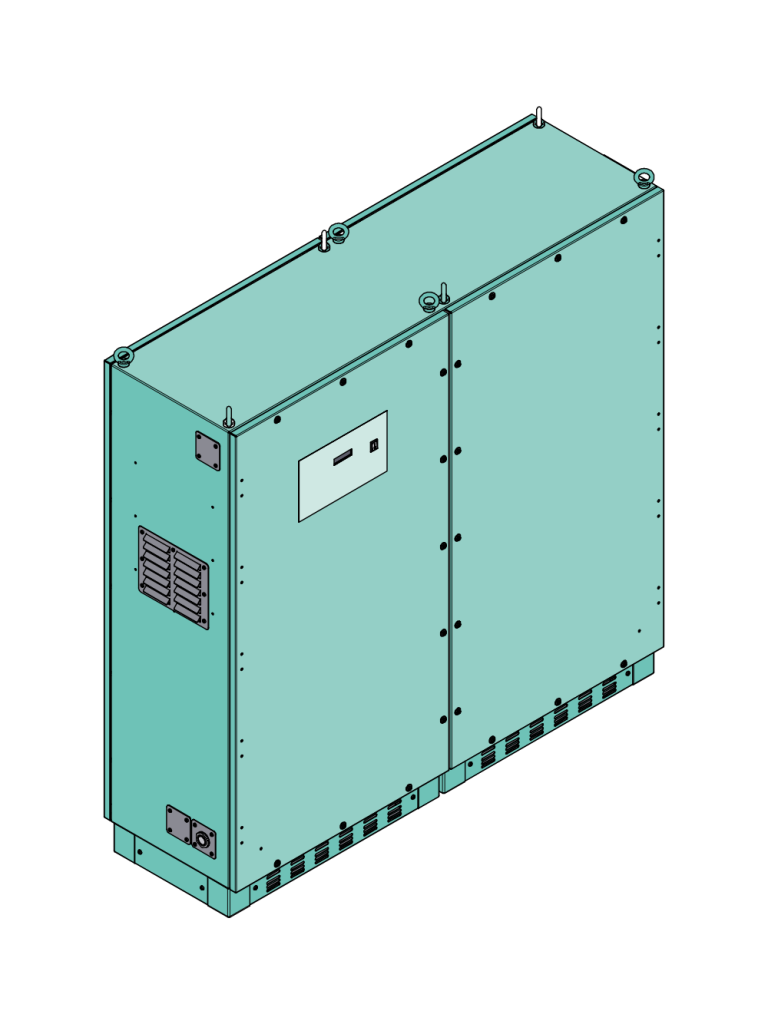

A5 / 100 kW
Dimensions: 1626 x 503 1601 mm
The A5 model offers high fixed power ratings for high-capacity applications (90 kW), ensuring maximum efficiency and operational continuity in large-scale plants.
Compare data
| Cabinet | Potenza massima (Kw) | Tensione batteria | Corrente di carica | Tensione in ingresso (3x Vac ±10%) |
|---|---|---|---|---|
| A1 | 6 - 20 | 24, 48, 80, 96 | 100 - 250 | 208, 230, 400, 440, 480, 600 |
| A2 | 9 - 32 | 24, 36, 48, 80, 96 | 100 - 400 | 208, 230, 400, 440, 480, 600 |
| A3 | 12-36 | 24, 36, 48, 59, 80 | 250 - 600 | 400, 440, 480, 600 |
| A4 | 50 | 500 | 125 | 400, 480 |
| A5 | 100 | 500 | 225 | 400, 480 |
