FRC Series
The FRC is a motive battery charger specifically engineered for industrial applications of varying complexity.
The FRC features lower gas development in the gassing phase, reduced water consumption and battery temperature rise, resulting in a maximized battery life.
Technical specifications
- Designed for industrial applications of any type and complexity
- Reliable taper charging system
- Wa-curve as the standard charging profile. Wo-Wa curve available.
- Compact and easily portable.
- Reduced gas emission, lower water consumption, and minimized battery temperature rise
- Maximizes battery lifespan
FRC Series
Compare models

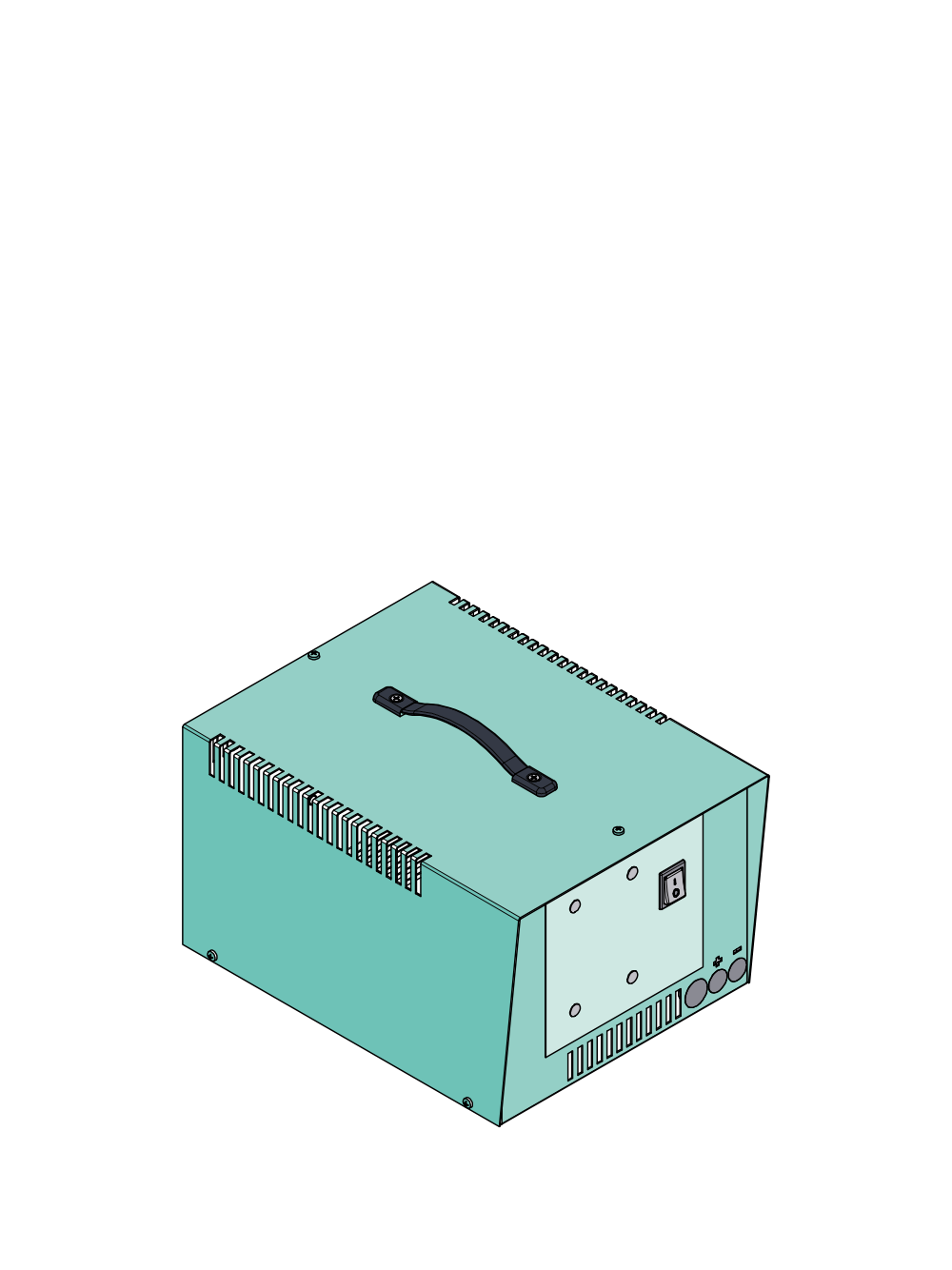

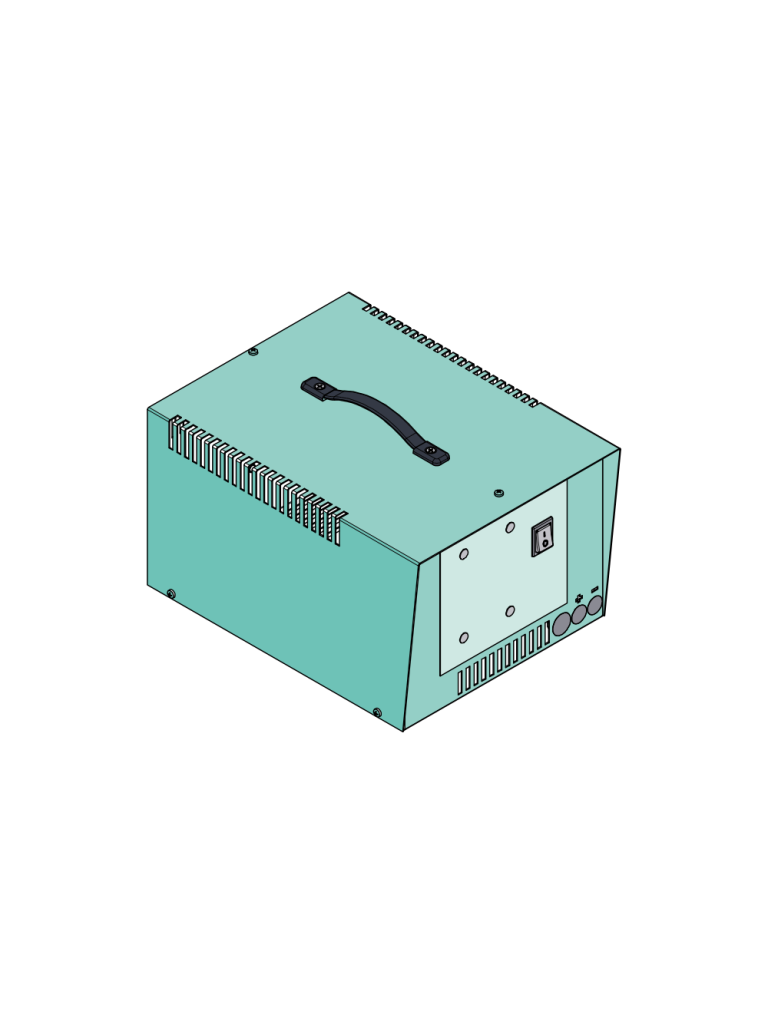

S0 / <1 kW
Dimensions: 255 x 342 x 205 mm
Compact single-phase charger for low-capacity batteries. Standard Wa curve, automatic control.

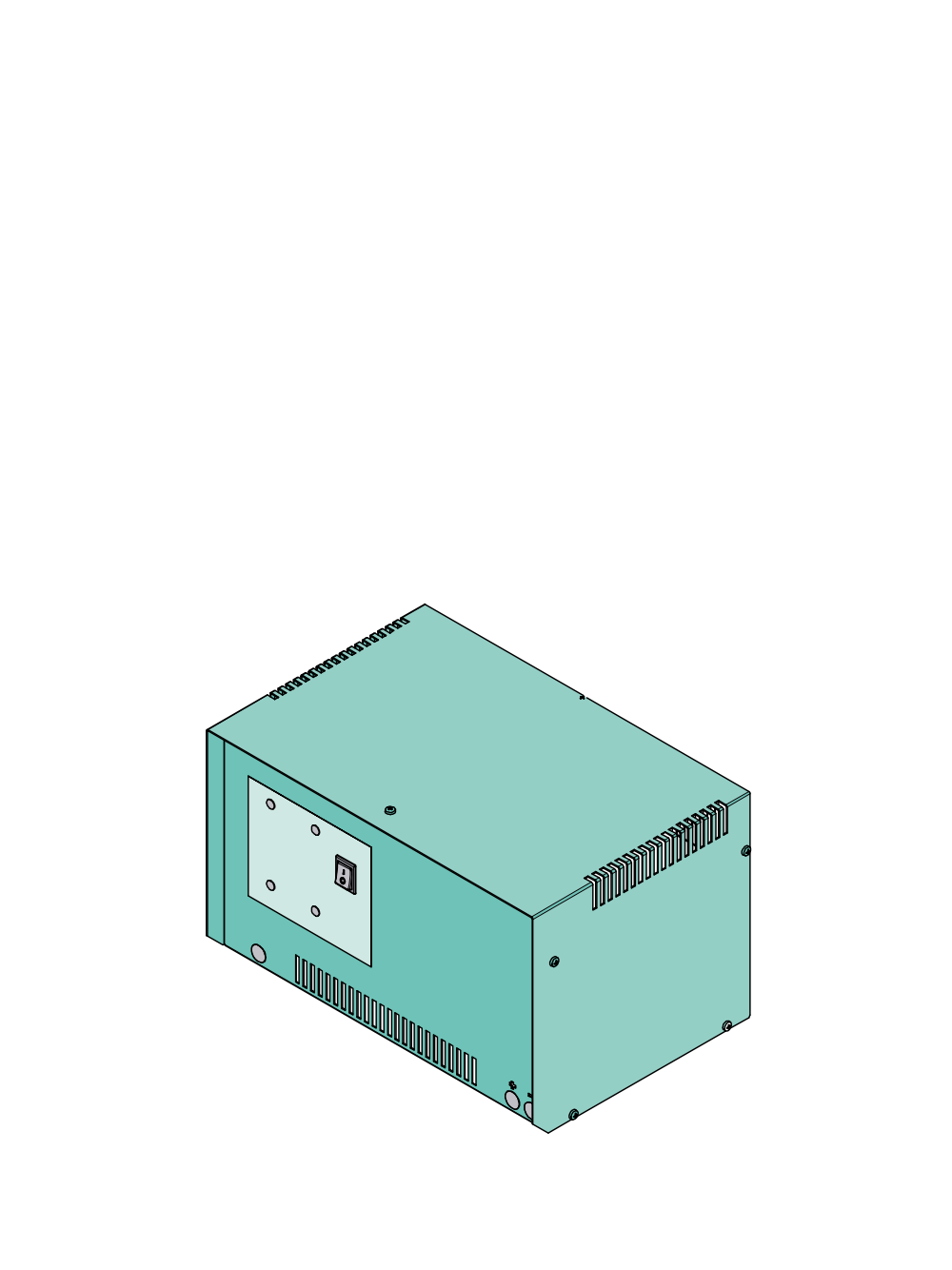

S1 / 1 - 2 kW
Dimensions: 425 x 238 x 266 mm
Enhanced version of the S0, for medium-capacity batteries. Robust structure.

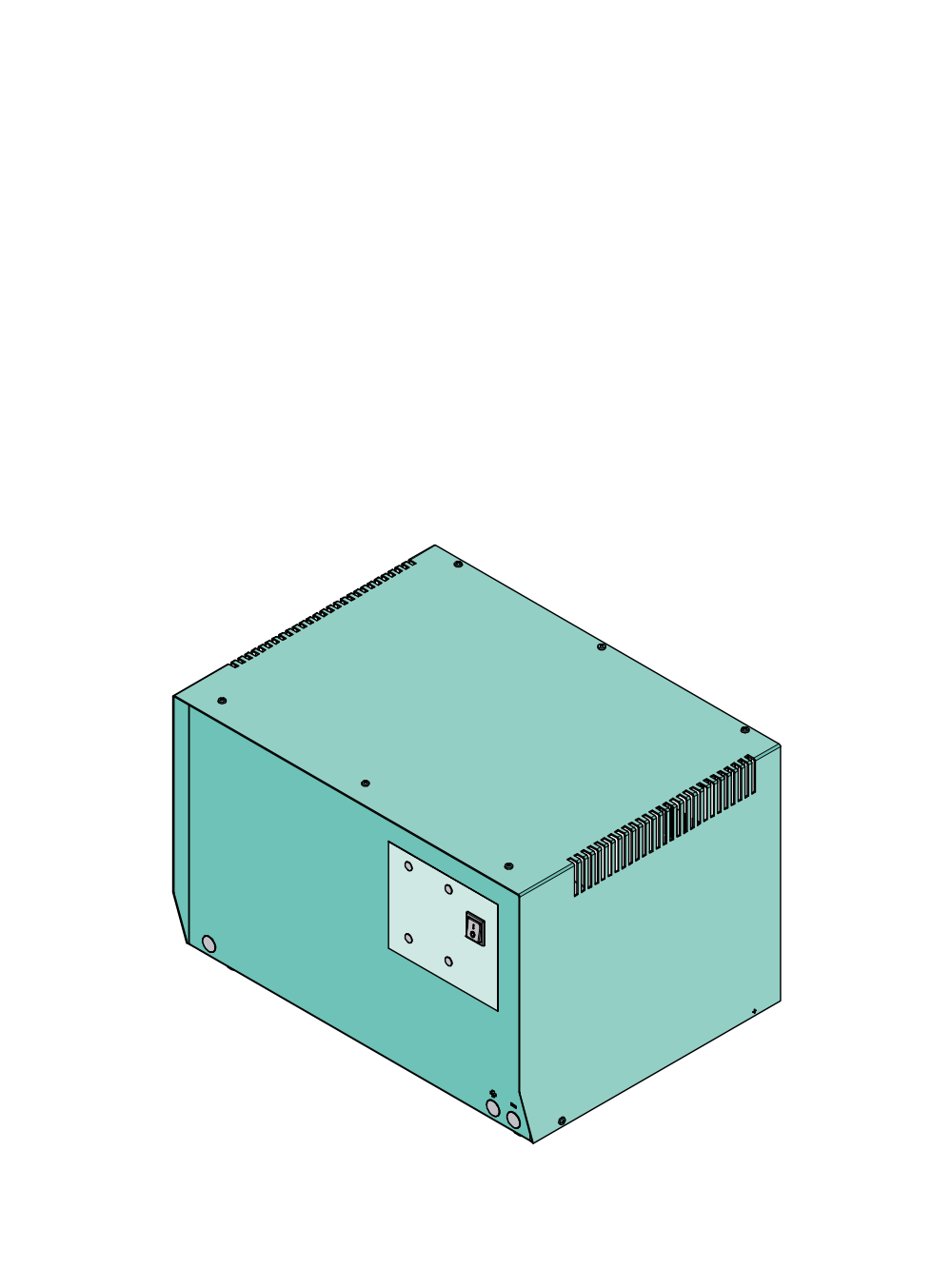

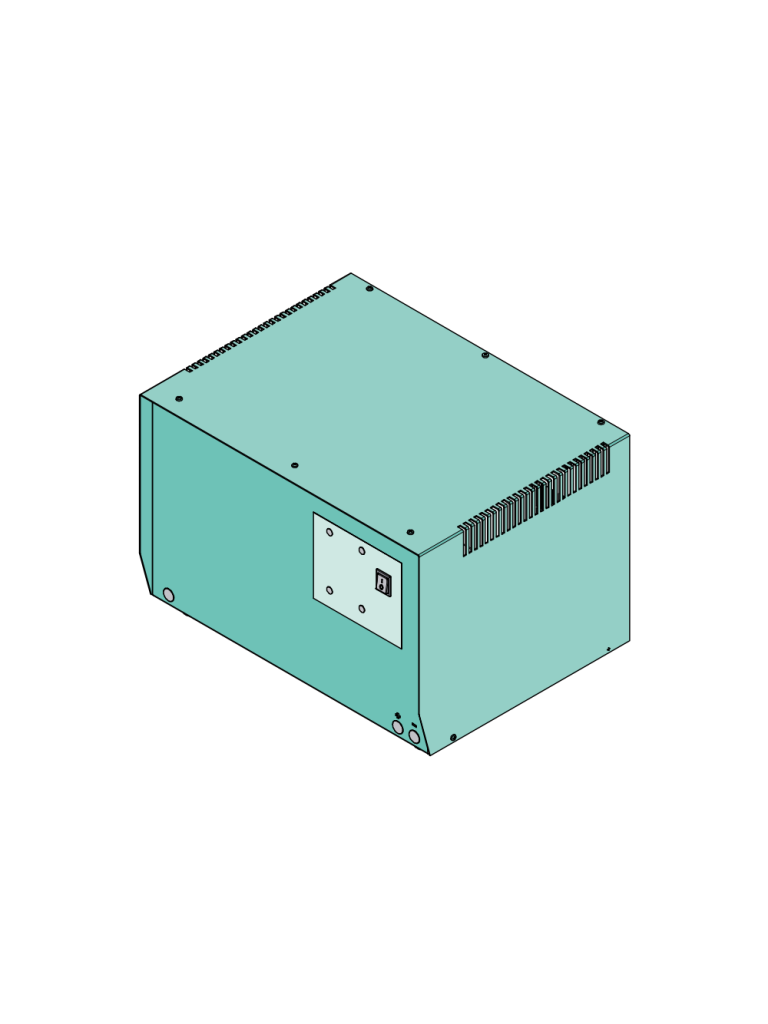

S2 / 2-3 kW
Dimensions: 508 x 283 x 346 mm
Enhanced version of the S1 for batteries with greater capacity and for intensive use.

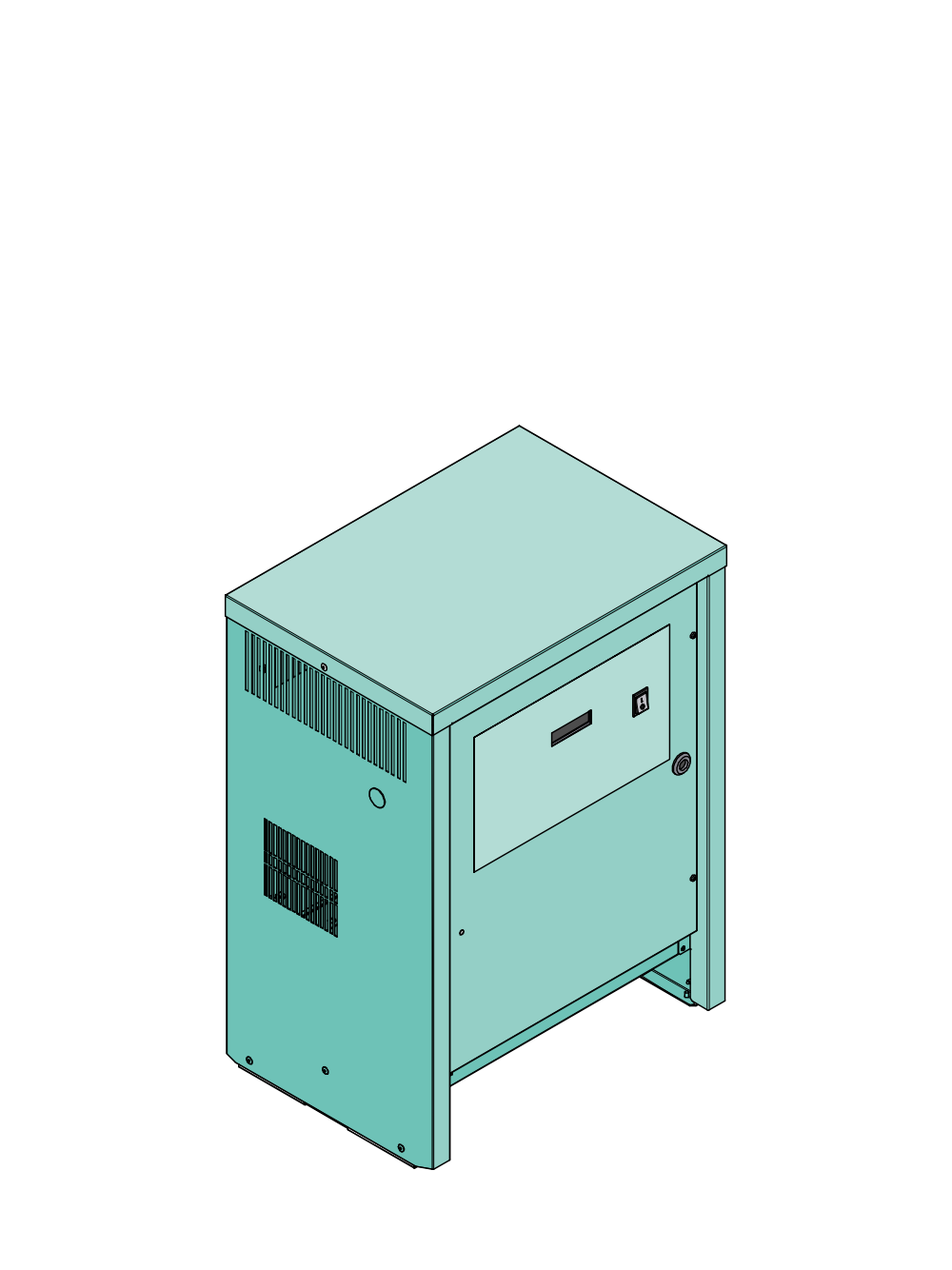

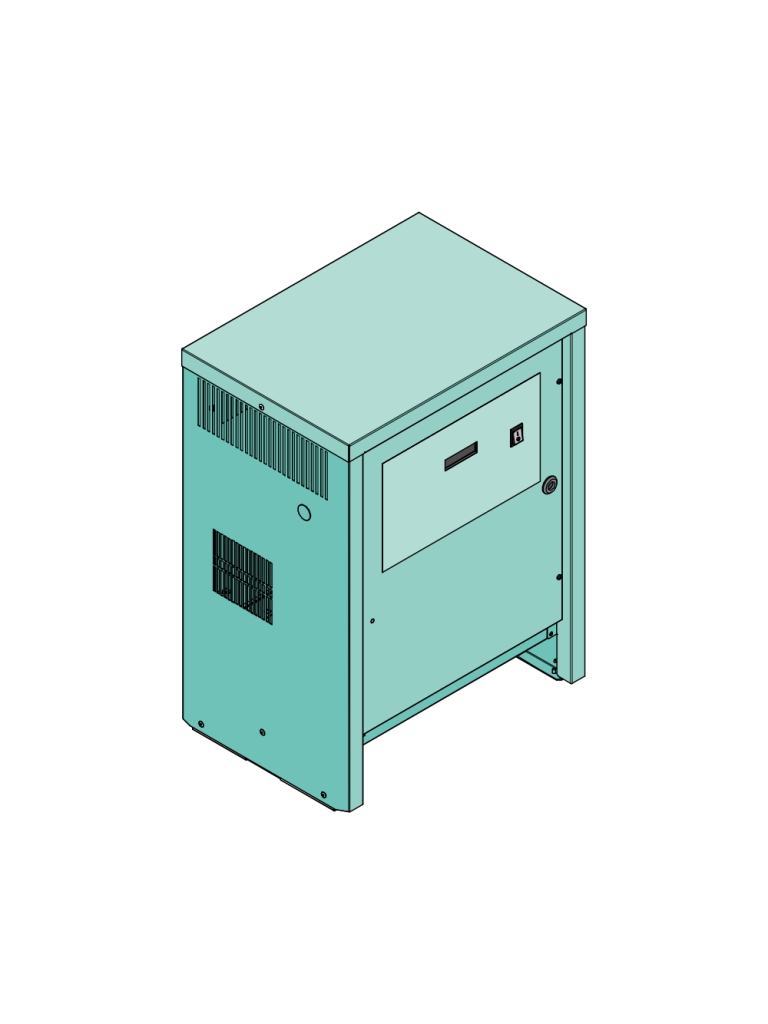

A0 / 2-10 kW
Dimensions: 505 x 357 x 694 mm
Technologically advanced and robust three-phase battery charger for high-power applications and heavy-duty cycles.

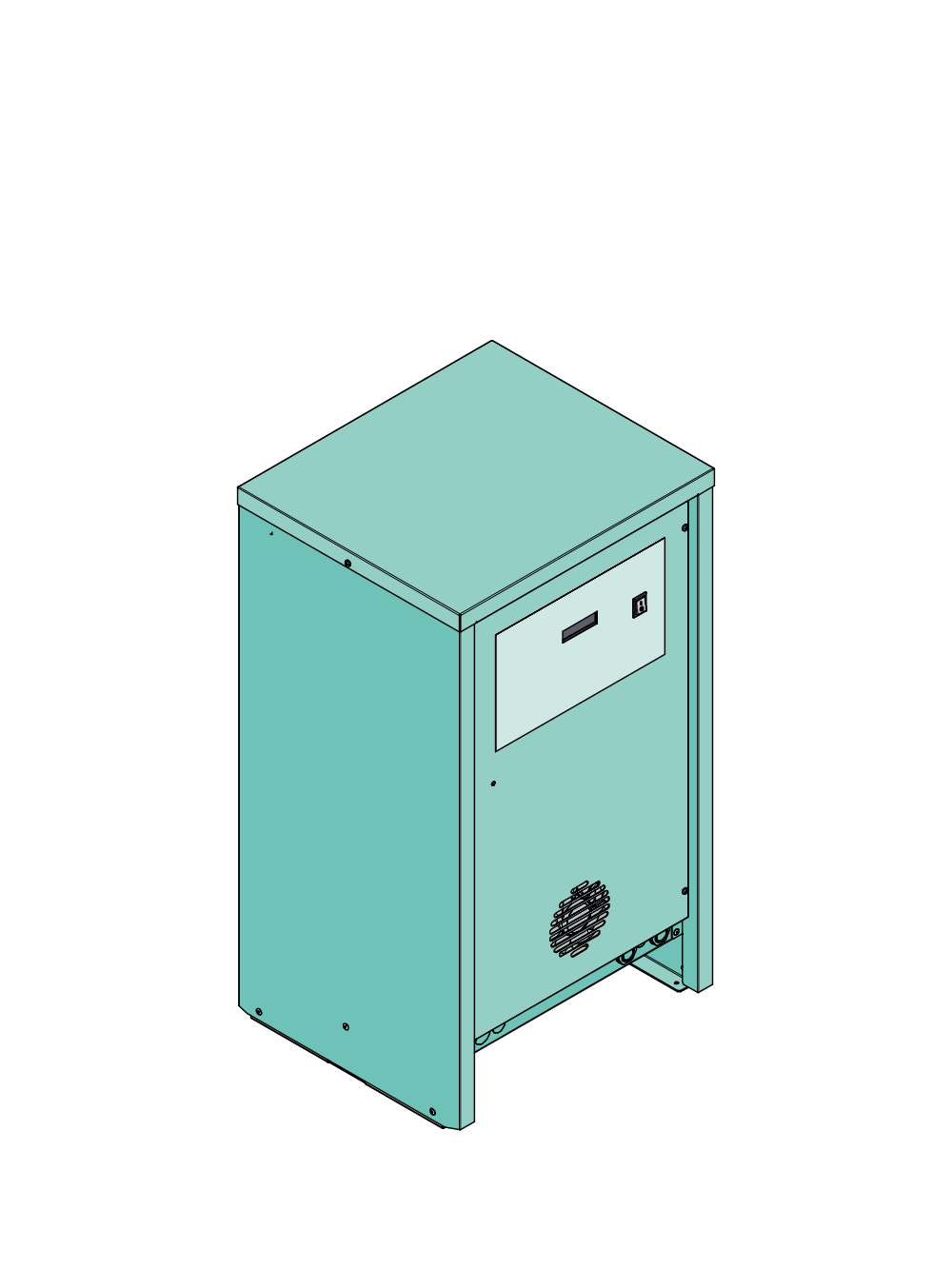

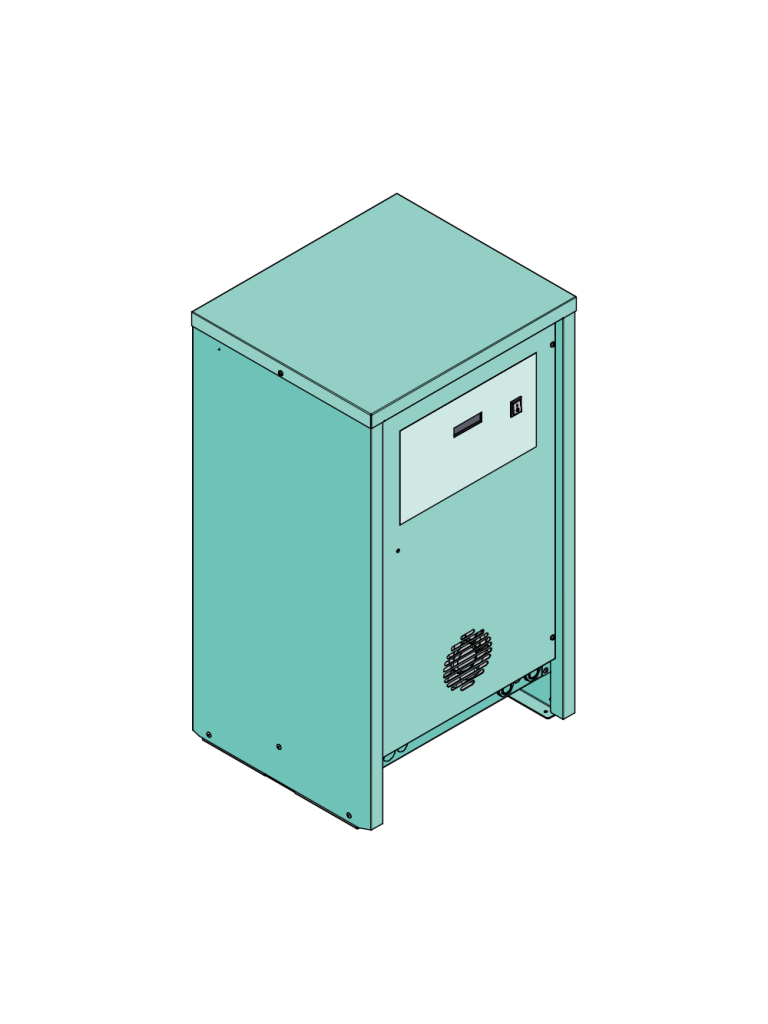

A1 / 4-14 kW
Dimensions: 505 x 442 x 901 mm
Three-phase model, powerful and reliable, designed to guarantee high performance in the most difficult conditions.
Compare data
| Cabinet | Potenza (Kw) | V out | A out | V input (Vac ±10%) |
|---|---|---|---|---|
| S0 | < 1 | 12, 24 | 15 - 40 | 1Ph: 120, 230 |
| S1 | 1 - 2 | 12, 24, 36, 48 | 30 – 60 | 1Ph: 120, 230 |
| S2 | 2 - 3 | 24, 36, 48 | 50 – 100 | 1Ph: 120, 230 |
| A0 | 2 - 10 | 24, 36, 48, 72, 80 | 50 – 140 | 3Ph: 400, 480 |
| A1 | 4 - 14 | 24, 36, 48, 72, 80, 96 | 100 – 200 | 3Ph: 400, 480 |
