DDC Series
Ideally suited for electric vehicle applications. Each model incorporates a sturdy and efficient design within a compact footprint. An isolated and stable 12 or 24 Volt output works standard industrial electronics, sensors, and control systems. This provides a simpler and more economical solution than inefficient battery taps or expensive high-voltage accessories.
Technical specifications
- Silent, high-frequency operation
- 500 Watt or 300 Watt output power
- Input Protection:
- Reverse polarity and inrush
- Output protection:
- Overload and short circuit
- Output enable available on select models
- Fully isolated (Input, output and baseplate)
- IP67 protected enclosure
- Parallel operation possible for up to three converters
(300 Watt models require an additional resistor or diode or each converter) - Integrated fuse holder on some models
- UL approved versions available
DDC Series
Compare models
DC1 / 300 W
Dimensions: 190 x 76 x 43 mm
The most compact model in the range, offering 300 W of output power. It is perfect for light applications or small spaces. It can be used in parallel (up to 3 units), with the addition of a resistor or diode for each converter.

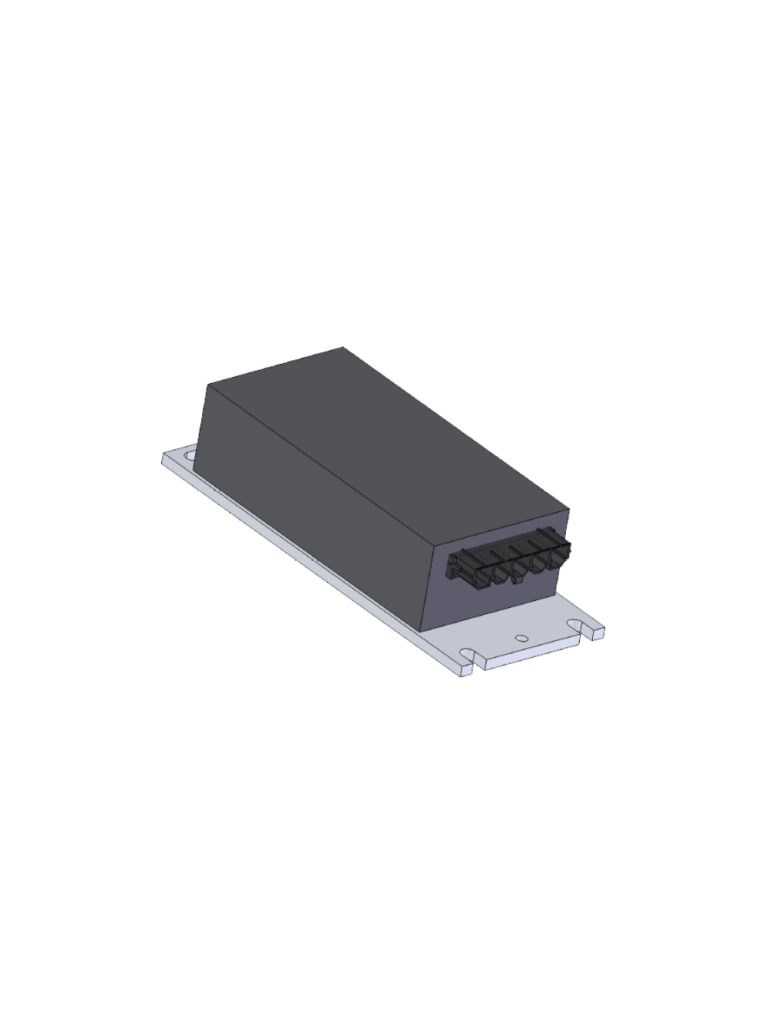

DC1 / 500 W
Dimensions: 190 x 76 x 43 mm
Enhanced version of the DC1, with 500 W output power. Offers greater capacity while maintaining the same compact design, suitable for systems with more demanding load requirements.

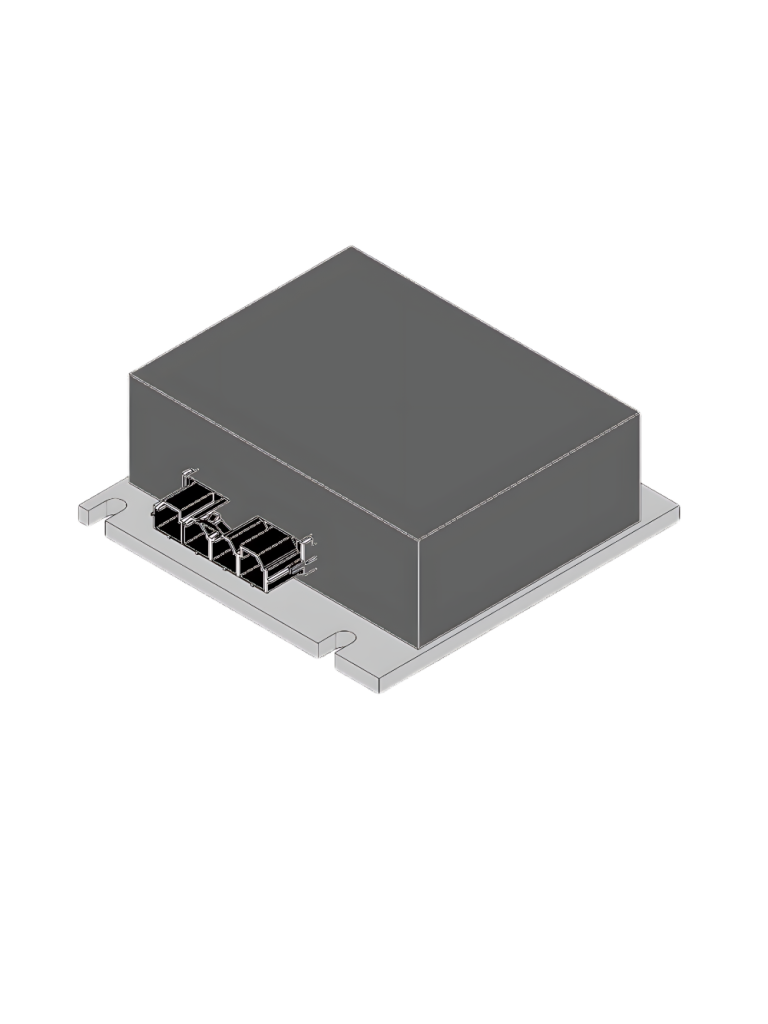

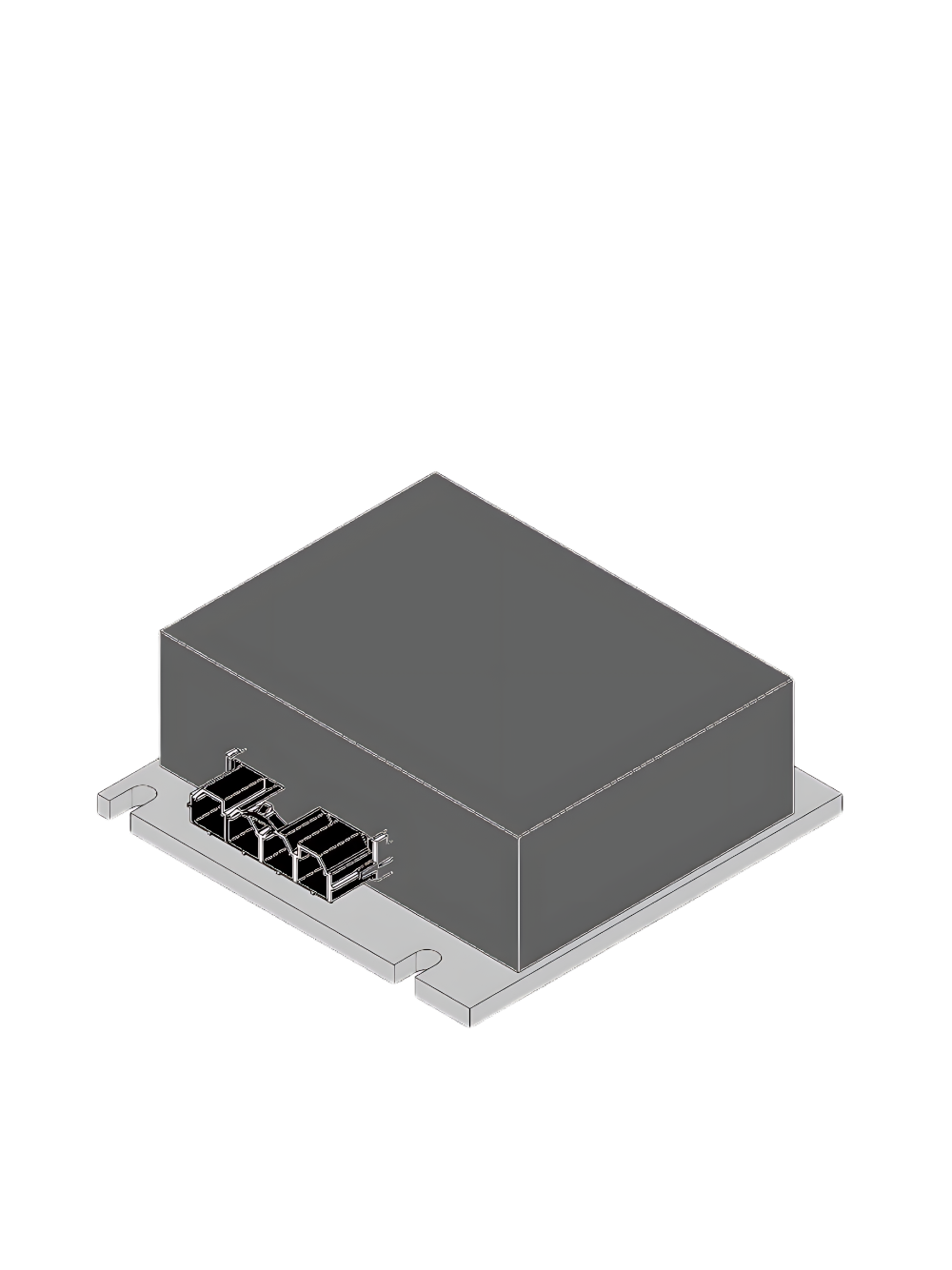

DC2 / 450 W
Dimensions: 650 x 552 x 1400 mm
Designed for more complex applications, the DC2 model retains all the robustness and protection features of the range, with customizable configurations and extended options. It is the ideal choice for those who require maximum reliability in harsh environments.
Compare data
| Modello | Potenza massima (W) | V input | V out |
|---|---|---|---|
| DC1 300W | 90 - 300 | 20/60, 240, 24/36, 24, 48, 96, 36/48, 36/80, 72/80 | 15.6, 24, 12, 14.1, 13.5, 14.5 |
| DC1 500 W | 500 | 48, 80 | 14, 13.4 |
| DC2 | 175 - 450 | 17/112, 19.2/112, 30/120, 50/130 | 24, 13.5, 14, 13.8 |
